IRIS CPE

GiaX innovative product-line, IRIS, provides broadband service providers with a means to re-use the in-building and to the building coaxial networks when deploying Fiber to the curb or Fiber to the MDU. Capable of offering well beyond 1 Gbps symmetrical services to subscribers.

The IRIS CPE Product family is consisting of Ethernet only modems and Wireless Gateways. The modems come with or without internal diplexer. The Gateways come with different WiFi capabilities and have an extended feature set.


IRIS™ product-line

GiaX innovative product-line, IRISTM, provides broadband service providers with a means to re-use the in-building and to the building coaxial networks when deploying Fiber to the curb or Fiber to the MDU. Capable of offering well beyond 1 Gbps symmetrical services to subscribers.

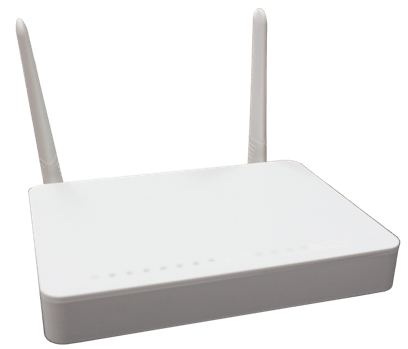

IRIS Wireless Gateway IRIS-WGD-3G-C200

IRIS Wireless Gateway IRIS-WG-3G-C400

  • 4 x 1G Ethernet (1000 Base T)
  • RF Connector: F-type
  • Wi-Fi 802.11ac, b, g and n
  • Compliancies – CE, FCC, ROHS, MoCA Access
  • Extended Feature set
  • OS – OpenWRT

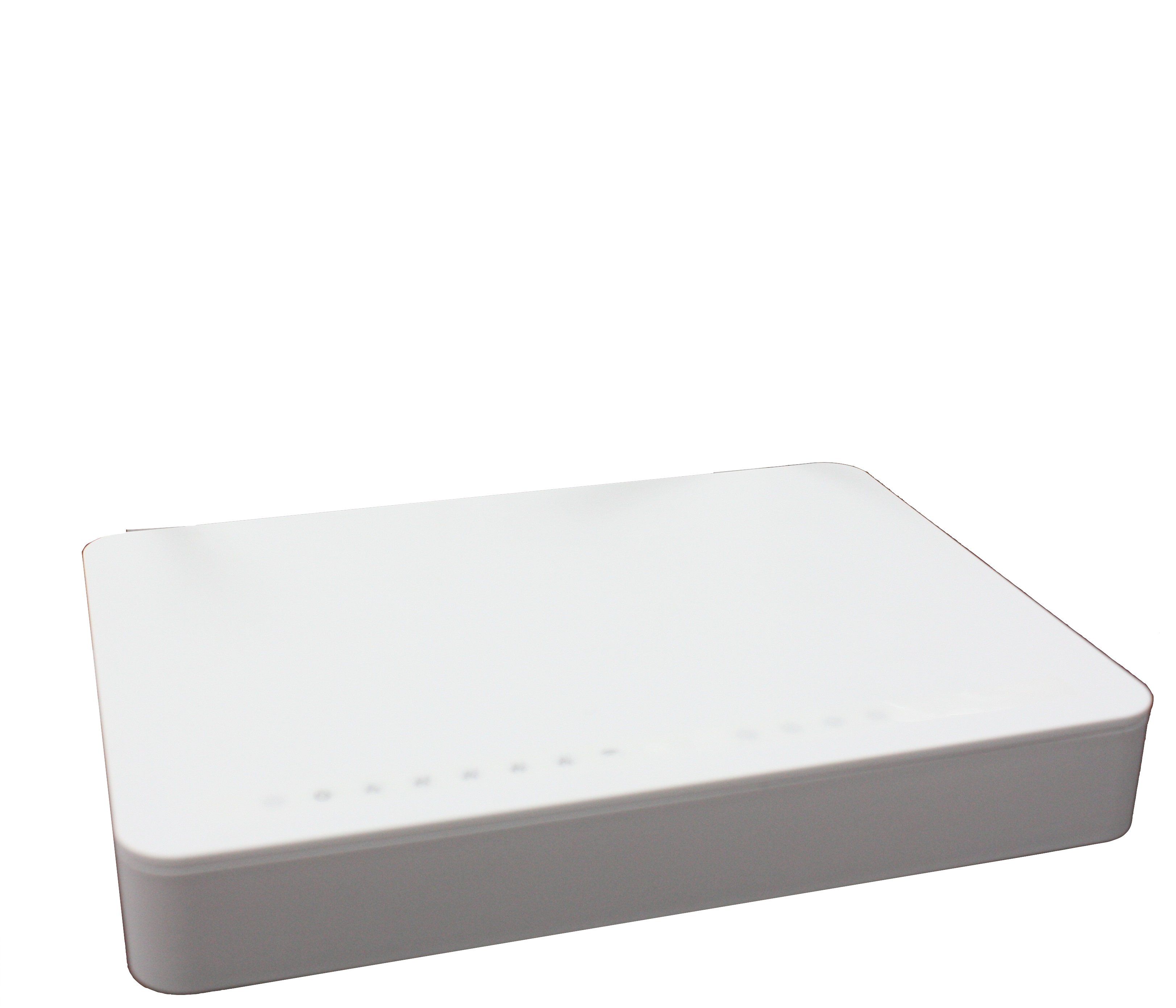

IRIS Wireless Gateway IRIS-WG-3G-C200

IRIS Wireless Gateway IRIS-WG-3G-C200

  • 4 x 1G Ethernet (1000 Base T)
  • RF Connector: F-type
  • Wi-Fi 802.11ac, b, g and n
  • Compliancies – CE, FCC, ROHS, MoCA Access
  • Integrated Diplexer
IRIS Wireless Gateway IRIS-WG-3G-C400

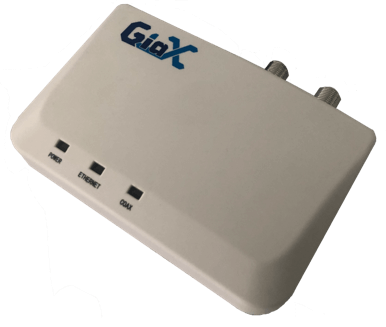

IRIS Modem IRIS-CMD-3G-100

  • 1G Ethernet (1000 Base T)
  • RF Connector: F-type
  • Internal MoCA Diplexer

LEDs

  • Power: Power indicator LED
  • Ethernet: Ethernet interface indicator LED
  • COAX: Coax cable link state indicator LED
IRIS Wireless Gateway IRIS-WG-3G-C400

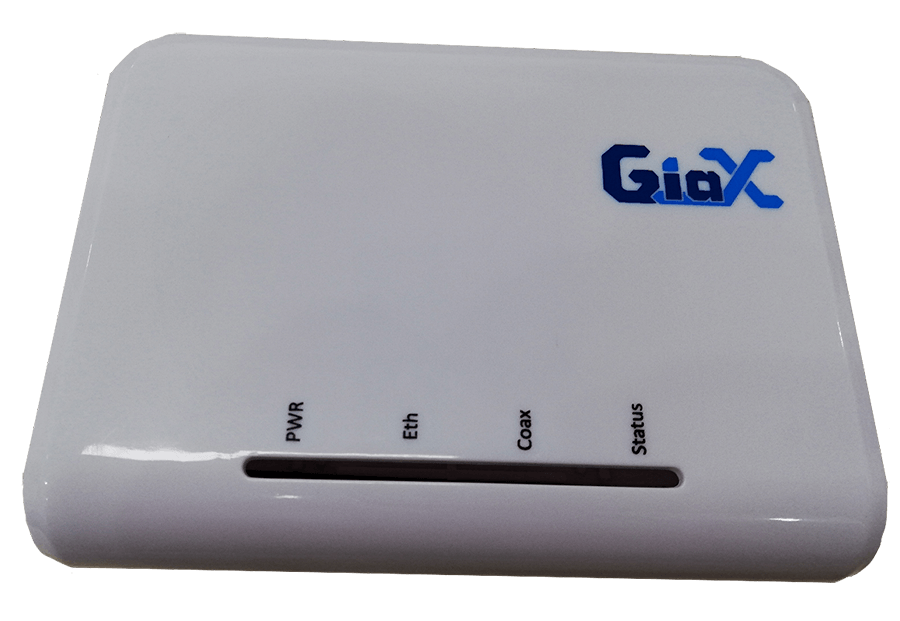

IRIS Modem IRIS-CM-3G-100

  • 1G Ethernet (1000 Base T)
  • RF Connector: F-type
  • Optional 2,5G SFP

LEDs

  • Power: Power indicator LED
  • Ethernet: Ethernet interface indicator LED
  • COAX: Coax cable link state indicator LED
